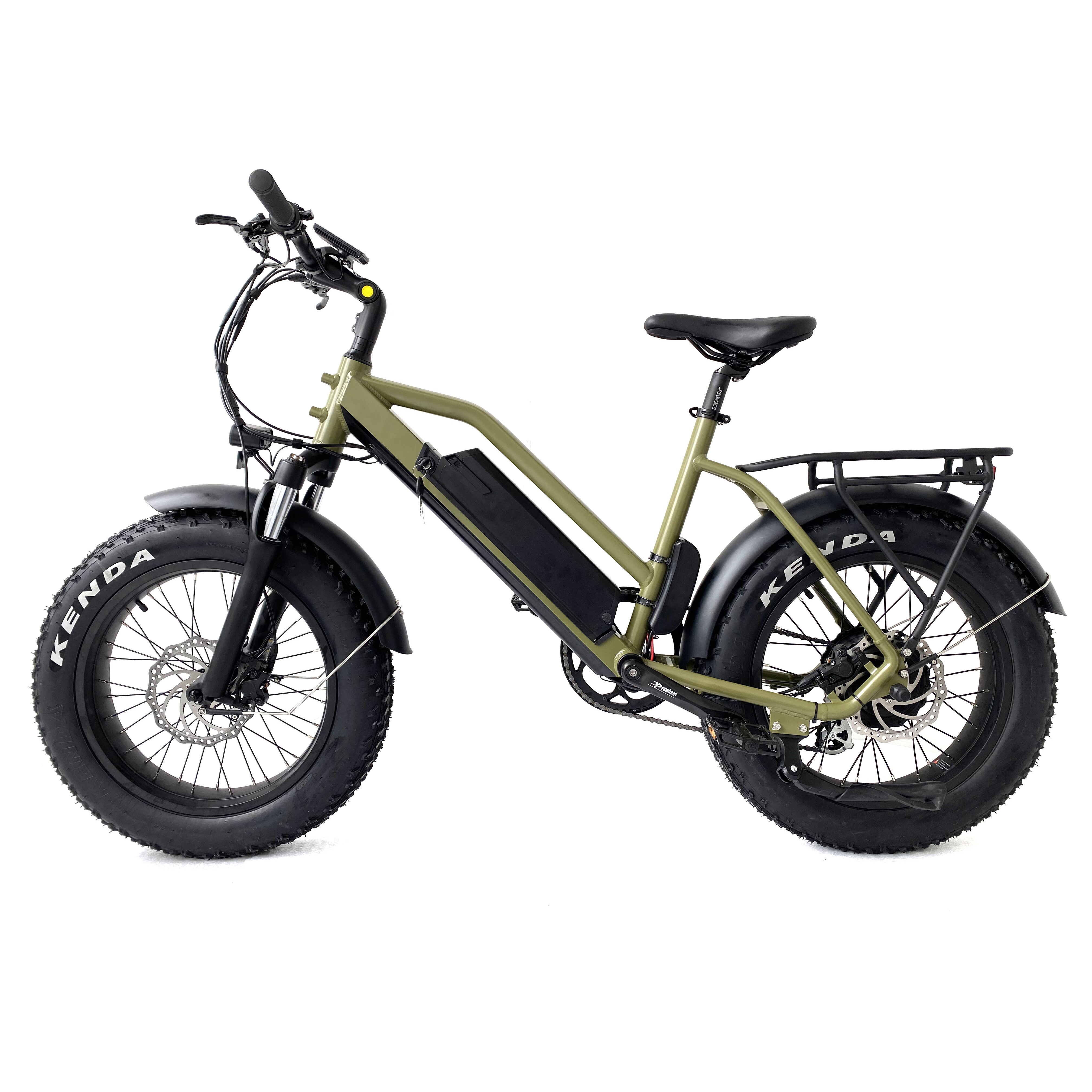

Fat tire green 48V 500W LCD display 7 speed F6 Cycling bicycle electric bike

It contains many of our design concepts: it combines power with ease, conciseness and convenience.
Streamlined frame geometry design and tires are upgraded to more comfortable, ergonomic driving, and low-span design makes riding more pleasant.

  • Features:

    1. Semi-hidden battery design
    2. Shock absorber front fork with lock function
    3. High-speed and high-power motor
    4. LCD display panel
    5. Shimano7 speed transmission system
    6. 20*4.0 tire
    7. Hydraulic disc brake ensures better braking performance

    ElectricElectric  systemsystem

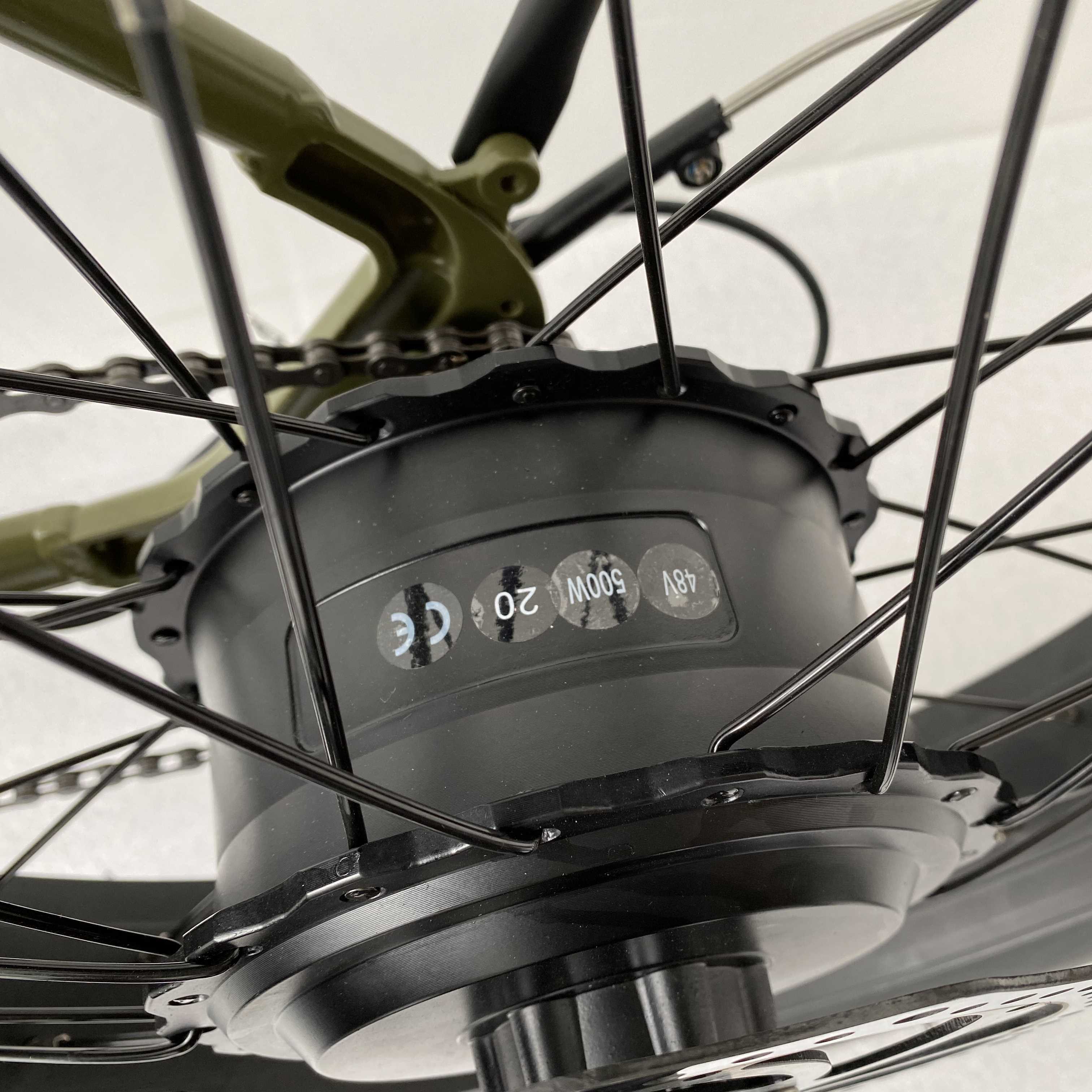

    Motor Rear wheel 48V 500W motor(Greenpedel Brand)
    Controller 48V 20A intelligent controller
    Battery 48V/10.4Ah lithium battery
    Charger 54.6V  2A charger
    Throttle Thumb throttle
    PAS 12 Magnetic pedal assist sensor

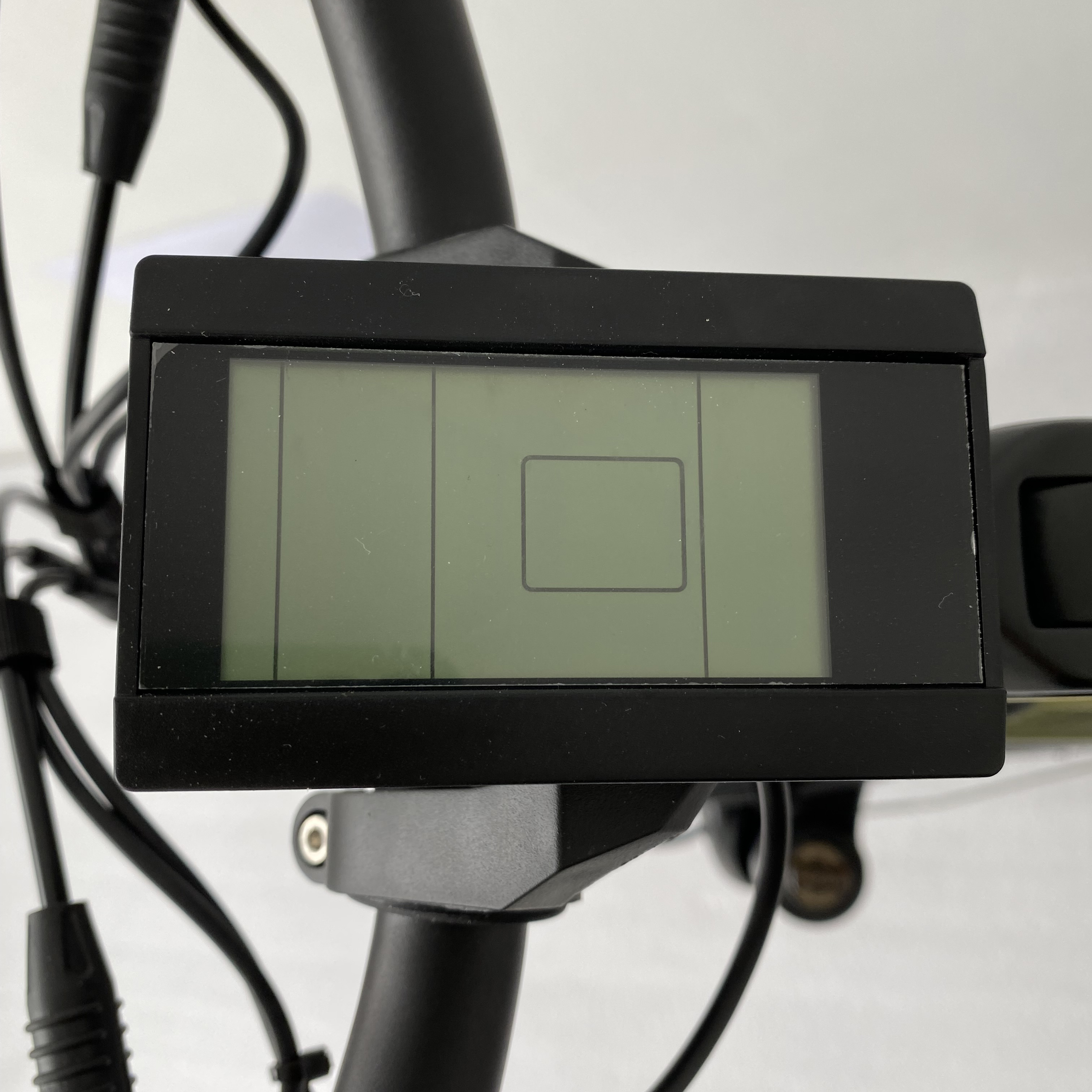

    Display LCD7C coloured display

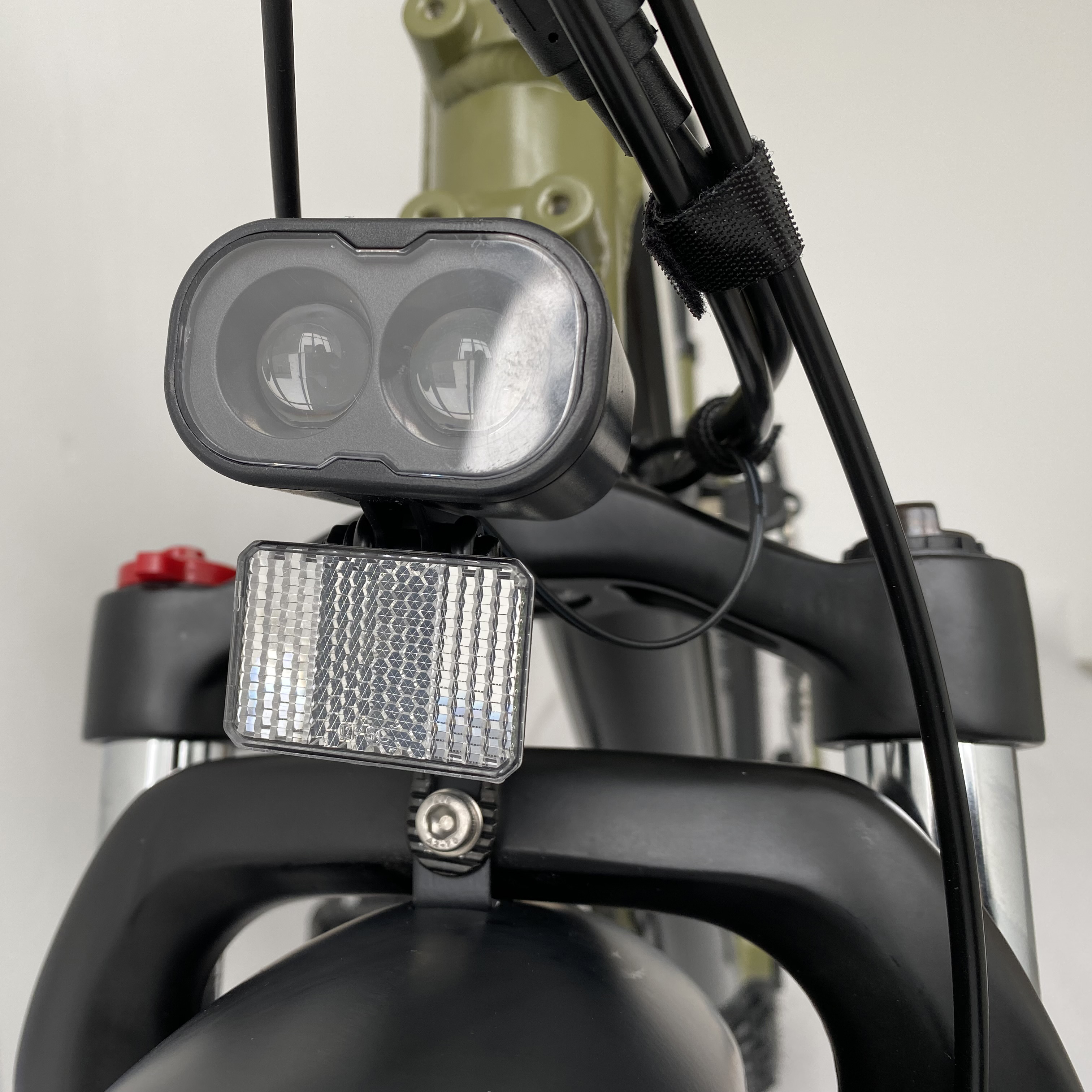

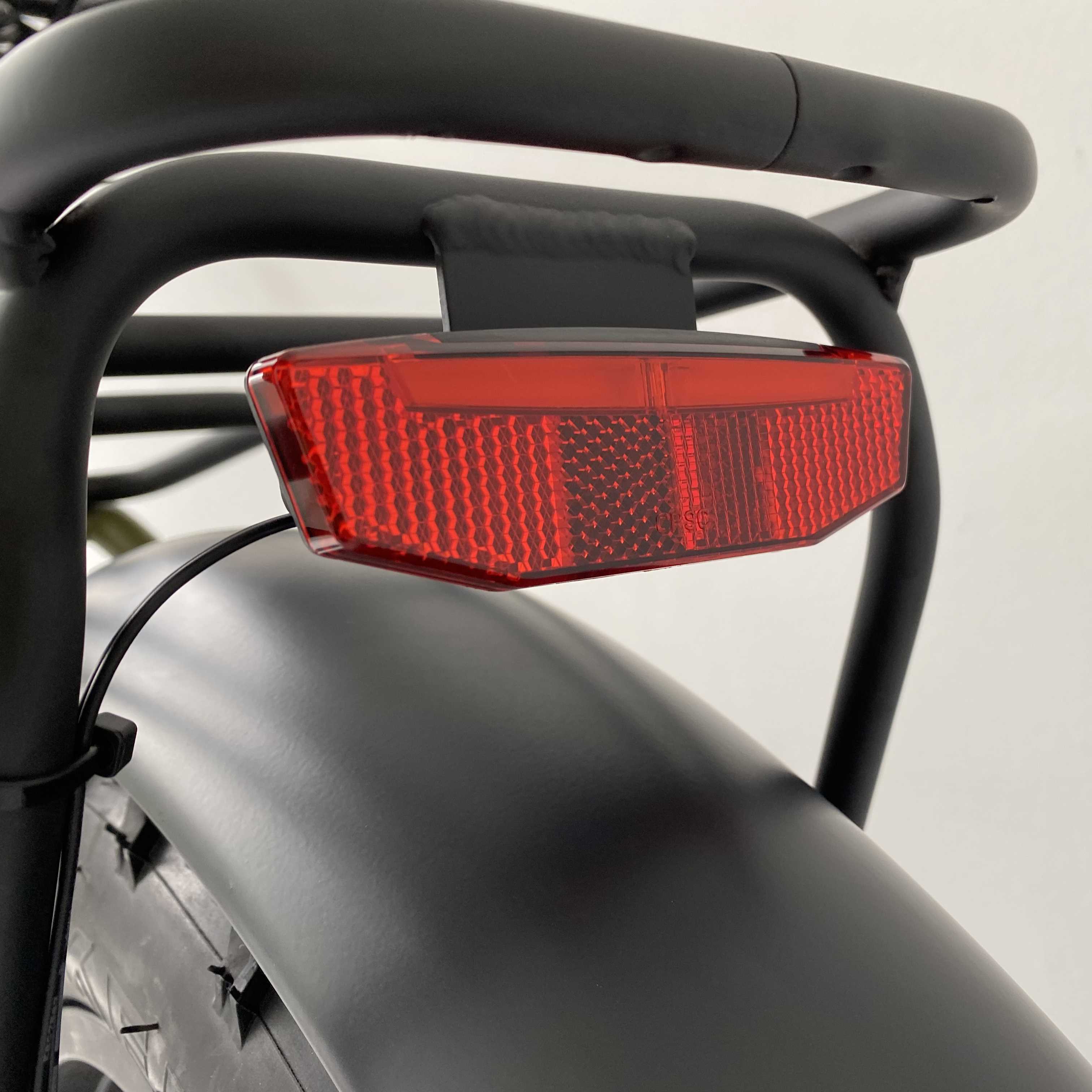

    Light LED headlight and taillight (Spanninga brand)
    Brake Lever Electric brake levers  (JEVELO hydraulic  brand)

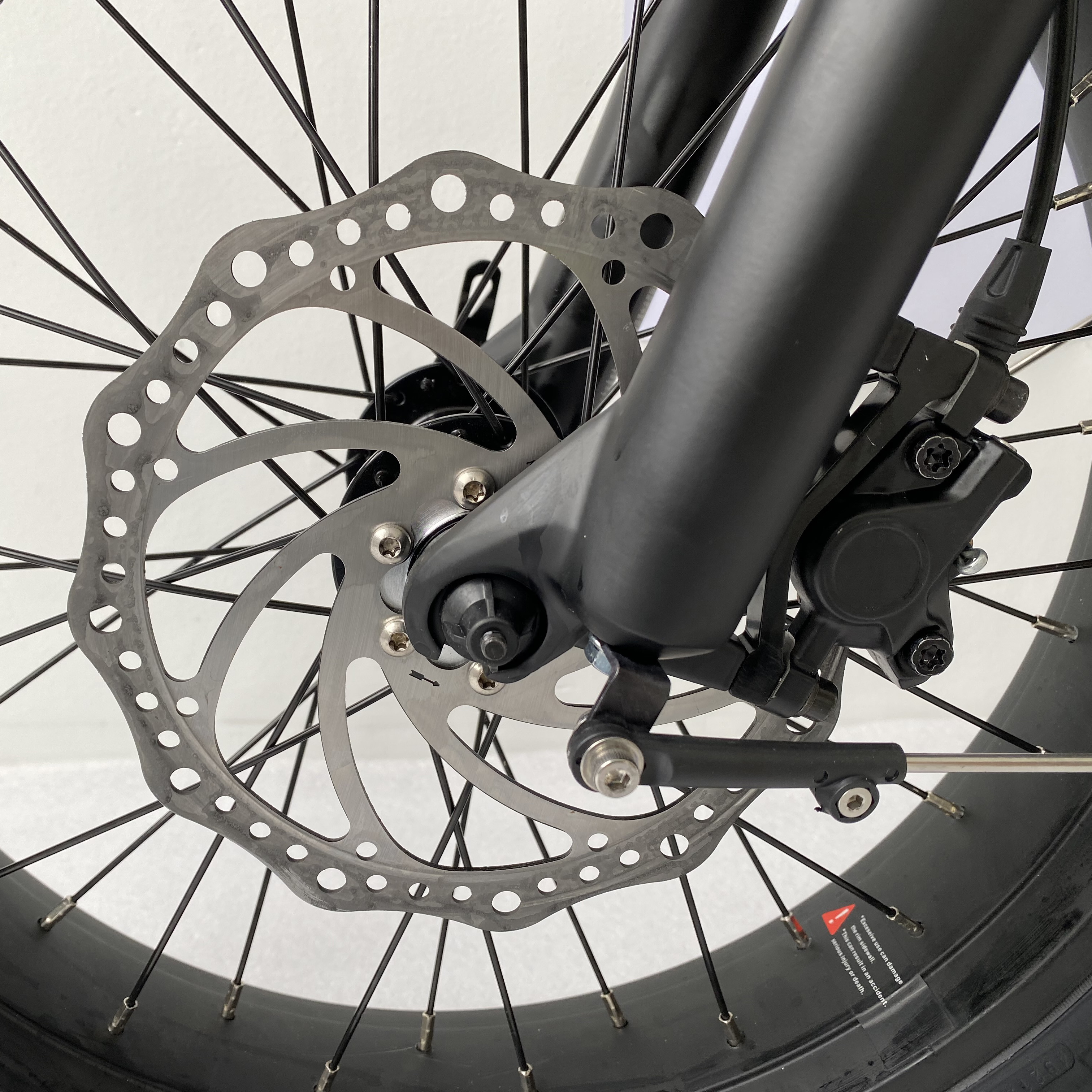

    Brake System Linear Pull  disc brakes  (JEVELO hydraulic  brand)
    MainMain  componentcomponent
    Frame 20" Aluminium Alloy 6061  Frame
    Handlebar AL-ALLOY 6061 (PROMAX  Brand)
    Grips Silicone grips (VELO Brand)
    Stem AL-ALLOY 6061 Stem(PROMAX Brand)
    Front Fork Aluminium Alloy 6061 Fork
    Rim 20" Alloy Double Wall
    Tire 20*4.0 (KENDA Brand)
    Mudguard Front and rear metal mudguards
    Saddle Thick and comfortable soft saddle
    Seat Post NIL
    Chainwheel 52 teeth double cover (PROWHEEL Brand)
    Crank PROWHEEL Brand
    Pedals AL-ALLOY Pedals   (Wellgo brand)
    Chain 7 speed chain (KMC Brand)
    Front Derailleur /
    Rear Derailleur 7-speed (SHIMANO TOURNEY)
    Rear Carrier AL-ALLOY
    ProformanceProformance
    Max speed EU:25km/h, USA:32km/h
    Max distance Throttle:50--55Km  ;   PAS: 60--80Km
    Max Load 125KG
    Charging time 6-8H
