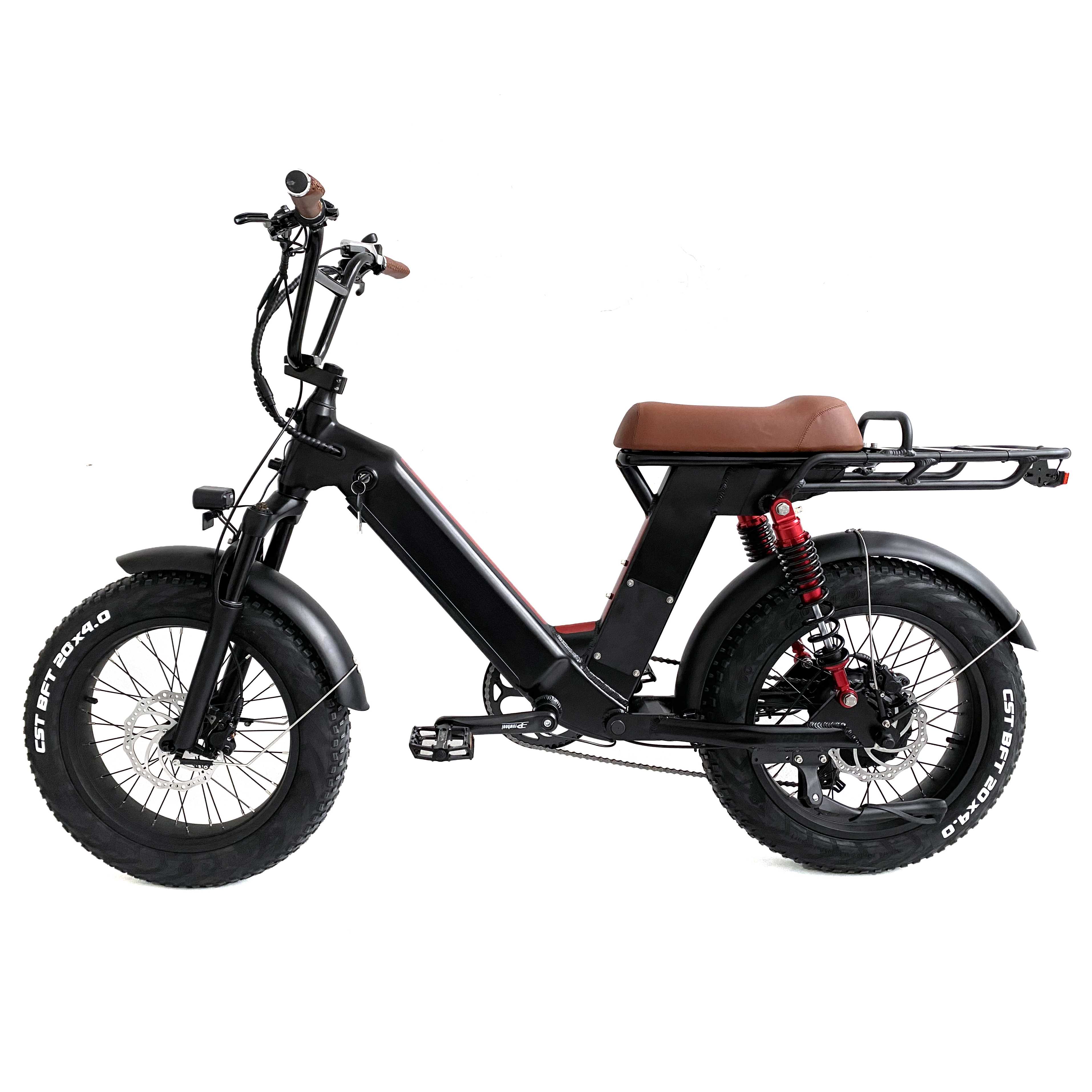

Fat Tire 48V 750W 20" 7 speed Aluminium Alloy F4 disc brakes Electric Bike

Smash the most daunting hills and make your journey more comfortable with shock-proof configurations. And provide a variety of accessories to carry.
The dynamic system provides you with additional flexibility to easily crush the most daunting hills. The front and back shock absorber configuration makes your journey more comfortable. And provide a variety of accessories to carry.

  • Features:

    1. Hidden battery design
    2. Equipped with CST20 * 4.0 tires for better passability
    3. Equipped with colored LCD

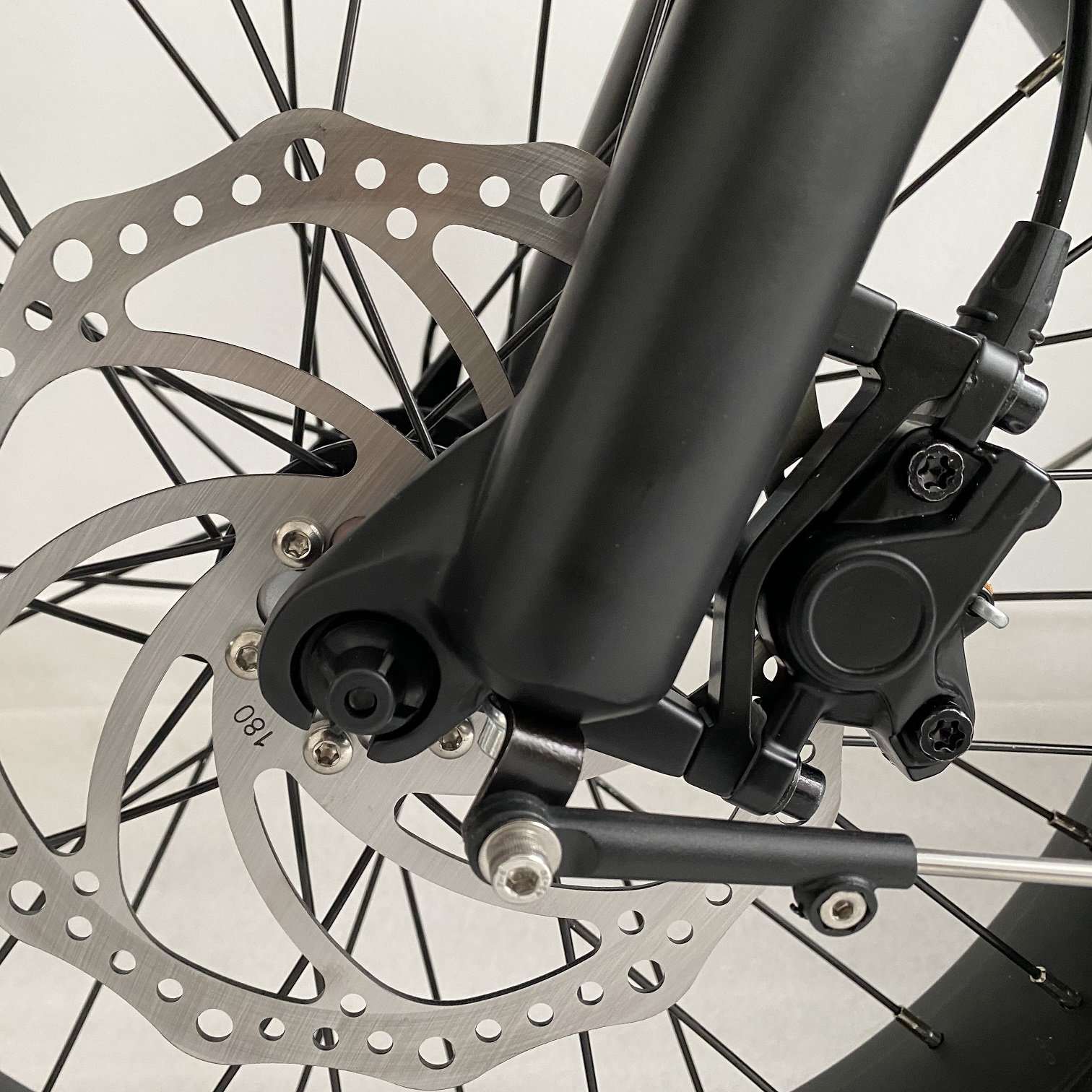

    4. Hydraulic disc brake ensures better braking performance

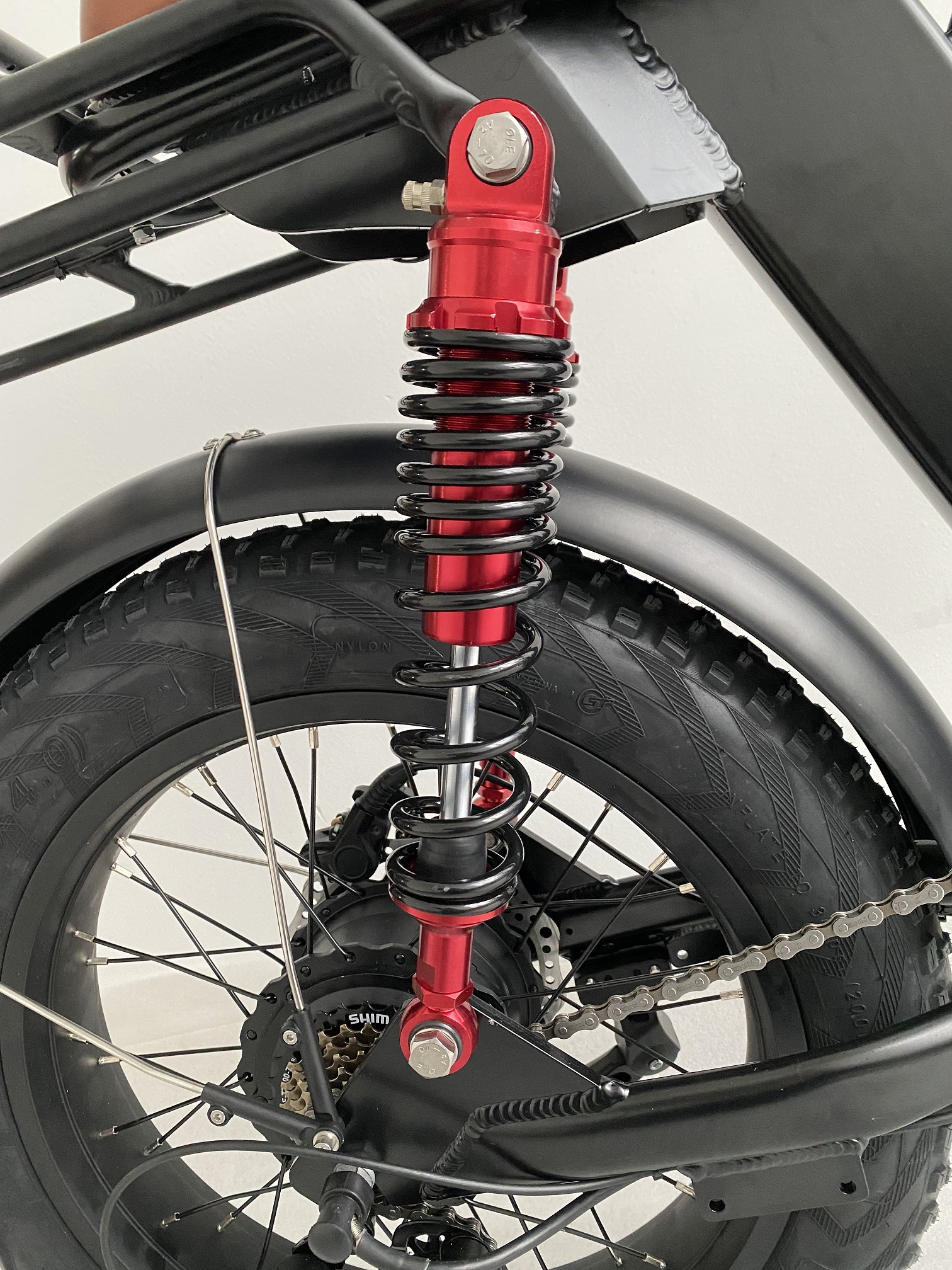

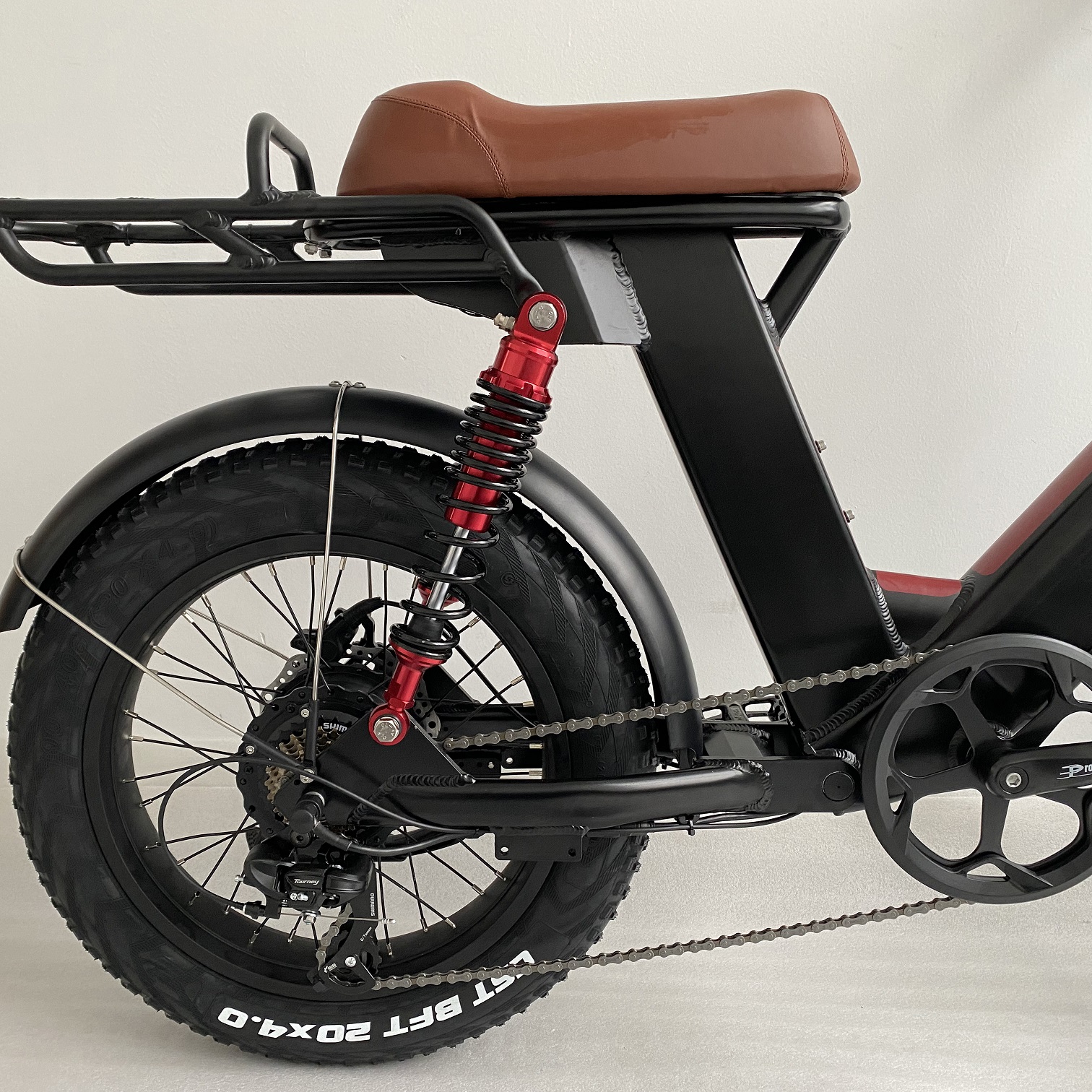

    5. Equipped with shock absorber front fork with lock function and rear air pressure shock absorber
    6. Provide optional accessories of front shelf, front basket, rear hanger, rear frame and pedal board
    7. Equipped with 48V750W high-power motor

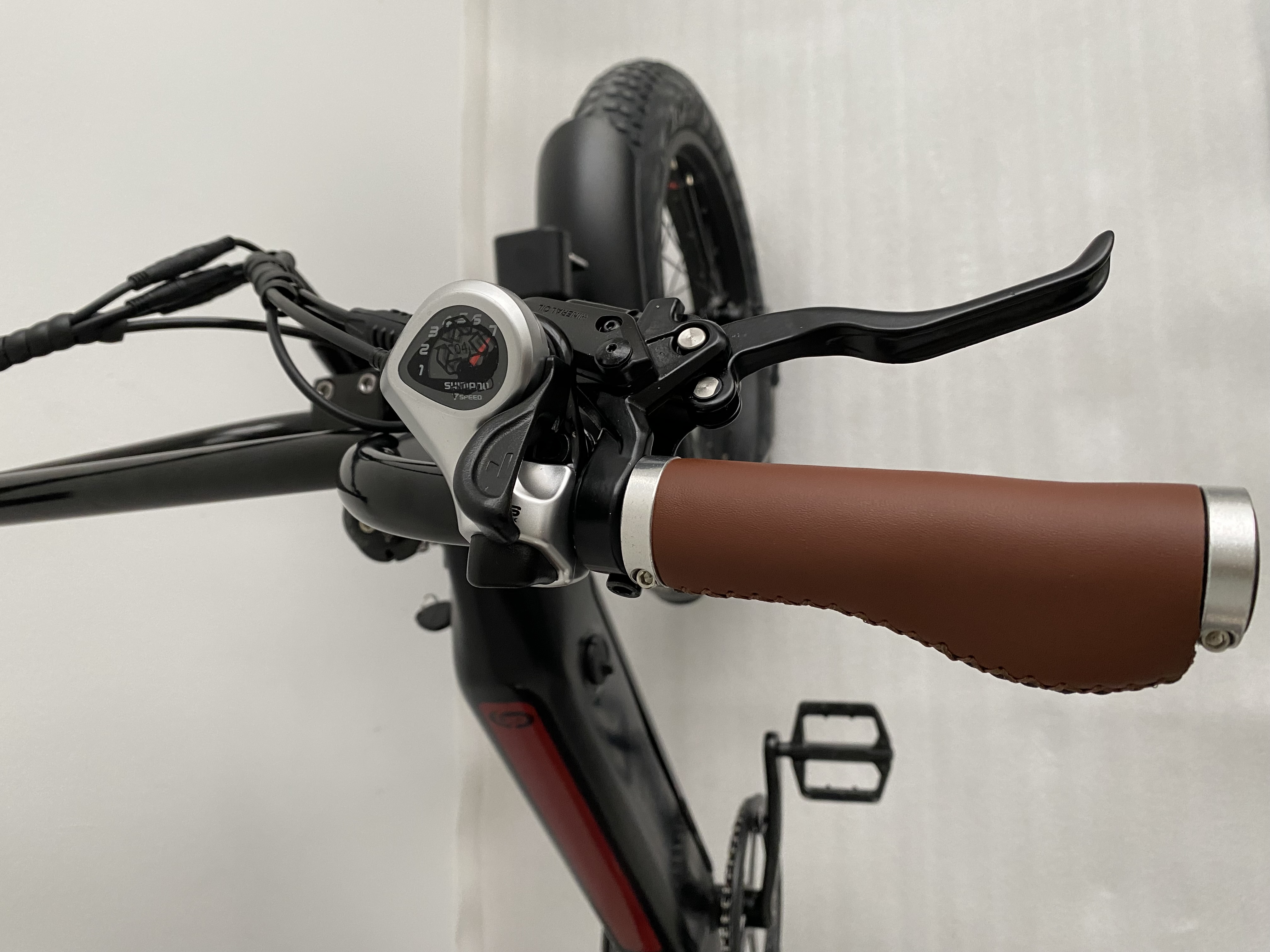

    8. Shimano7 speed transmission system

    ElectricElectric  systemsystem

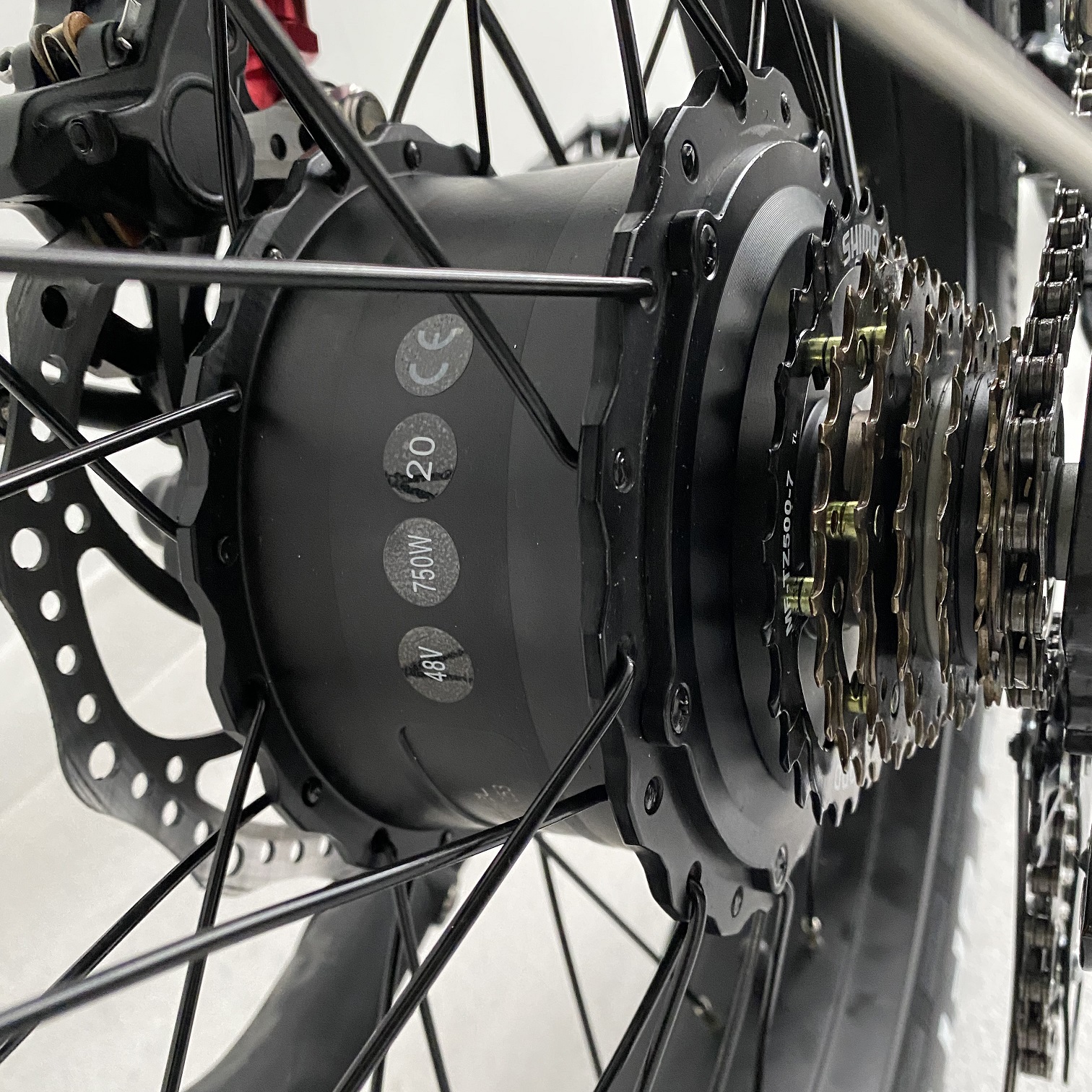

    Motor Rear wheel 48V 750W motor (Greenpedel Brand)
    Controller 48V 25A intelligent controller
    Battery 48V/14Ah lithium battery (LG Cells) MAX 48V 17.5
    Charger 54.6V  2A charger
    Throttle Thumb throttle
    PAS 12 Magnetic pedal assist sensor
    Display LCD7C coloured display
    Light LED headlight and taillight (Spanninga brand)

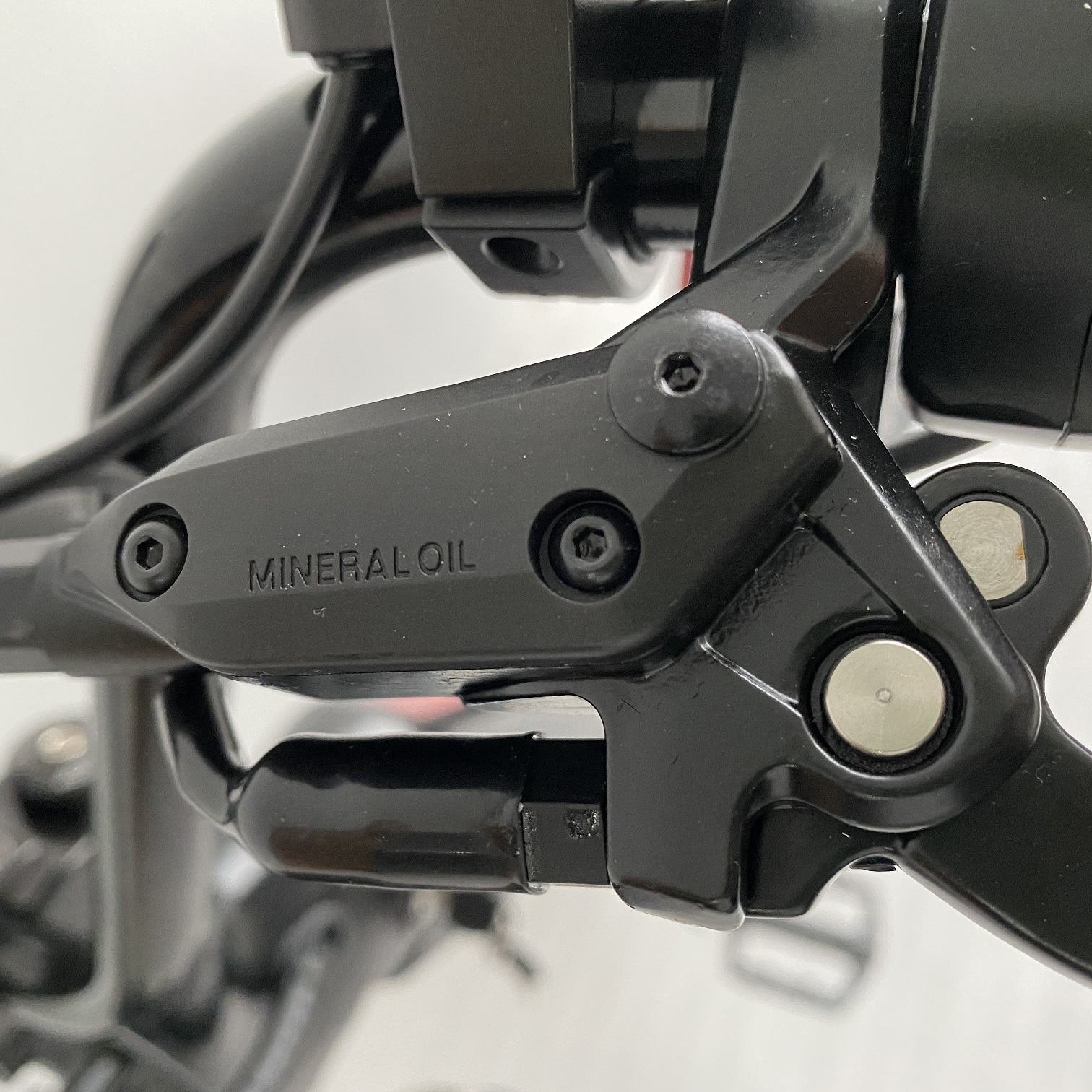

    Brake Lever Electric brake levers  (JEVELO hydraulic  brand)
    Brake System Linear Pull  disc brakes  (JEVELO hydraulic  brand)
    MainMain  componentcomponent
    Frame 20" Aluminium Alloy 6061  Frame
    Handlebar AL-ALLOY 6061 (PROMAX  Brand)
    Grips Silicone grips (VELO Brand)
    Stem AL-ALLOY 6061 Stem (PROMAX Brand)
    Front Fork Aluminium Alloy 6061 Fork
    Rim 20" Alloy Double Wall
    Tire 20*4.0 (CST Brand)
    Mudguard Front and rear metal mudguards
    Saddle Thick and comfortable soft saddle
    Seat Post NIL
    Chainwheel 52 teeth double cover (PROWHEEL Brand)
    Crank PROWHEEL Brand
    Pedals AL-ALLOY Pedals   (Wellgo brand)
    Chain 7 speed chain (KMC Brand)
    Front Derailleur /
    Rear Derailleur 7-speed (SHIMANO TOURNEY)
    Rear Carrier AL-ALLOY
    ProformanceProformance
    Max speed EU:25km/h, USA:32km/h
    Max distance Throttle:50--55Km  ;   PAS: 60--80Km
    Max Load 125KG
    Charging time 6-8H
