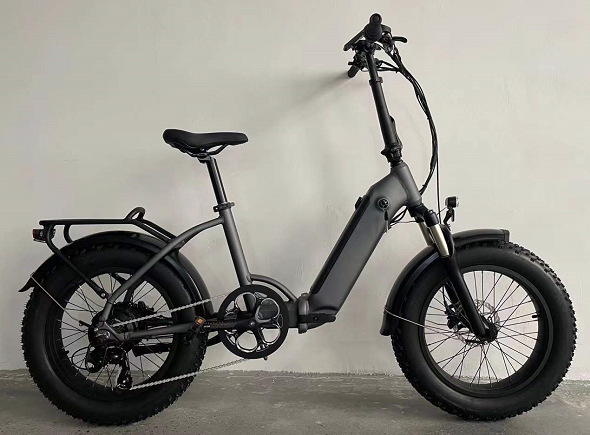

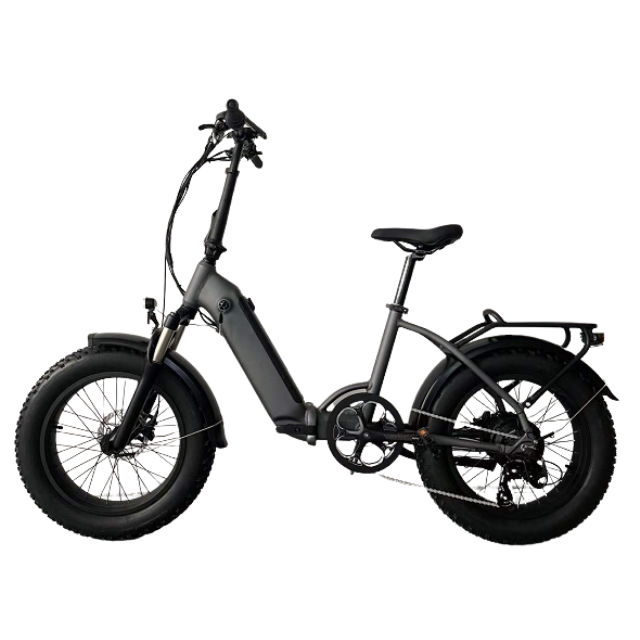

Folding 48V 500W 20 Inch A5 Aluminium Alloy 7 Speed Ebike Electric Bike Bicycle

It contains many of our design concepts: it combines power with ease, conciseness and convenience.
Streamlined frame geometry design and tires are upgraded to more comfortable, ergonomic driving, and low-span design makes riding more pleasant.

  • Features:

    1. Hidden battery design
    2. Shock absorber front fork with lock function
    3. High-speed and high-power motor
    4. LCD display panel
    5. Shimano7 speed transmission system
    6. 20*4.0 tire
    7. Folding hinges have multiple safety measures to help prevent accidental unlocking and ensure that they are locked firmly and safely.

    ElectricElectric  systemsystem
    Motor Rear wheel 48V 500W motor  (Greenpedel Brand)
    Controller 48V 22A intelligent controller
    Battery 48V/14Ah lithium battery (LG Cells)
    Charger 54.6V  2A charger
    Throttle Thumb throttle/ half twist throttle
    PAS 12 Magnetic pedal assist sensor
    Display 800S LCD display
    Light LED headlight and taillight (Spanninga brand)
    Brake Lever Electric brake levers (JEVELO brand)
    Brake System Linear Pull  disc brakes (JEVELO brand)
    MainMain  componentcomponent
    Frame 20" Aluminium Alloy 6061 Folding Frame
    Handlebar AL-ALLOY 6061 (PROMAX  Brand)
    Grips Silicone grips (VELO Brand)
    Stem Foldable AL-ALLOY 6061 Stem
    Front Fork Suspension Fork
    Rim 20" Alloy Double Wall
    Tire 20*4.0 (CST Brand)
    Mudguard Front and rear  mudguards
    Saddle Thick and comfortable soft saddle (VELO Brand)
    Seat Post AL-ALLOY 6061
    Chainwheel 52 teeth double cover (PROWHEEL Brand)
    Crank PROWHEEL Brand
    Pedals Foldable pedals   (Wellgo brand)
    Chain 7 speed chain (KMC Brand)
    Front Derailleur /
    Rear Derailleur 7-speed (SHIMANO TOURNEY)
    Rear Carrier AL-ALLOY
    ProformanceProformance
    Max speed EU:25km/h, USA:32km/h
    Max distance Throttle:25--35Km  ;   PAS: 45--60Km
    Max Load 125KG
    Charging time 4-6H
